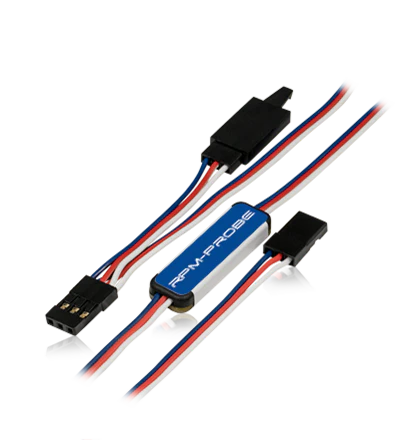

RPM-Probe
Rotational speed sensor for ignition units with an induction pick-up, or ignition units without a rev-count output.
Technical Data
| Dimensions |
32 x 10 x 4 mm |
| Weight |
7 g |
| Temperature range |
-30°C to +105°C |
|
|
|
|
|
Product Description
|
The RPM probe is connected directly to the ignition unit's induction sensor or magnet sensor. The unit amplifies and processes the signal in such a way that the output passes accurate rotational speed pulses to the SparkSwitch RS, which in turn makes the rotational speed (rpm) available for the radio control system's telemetry system.
|
|

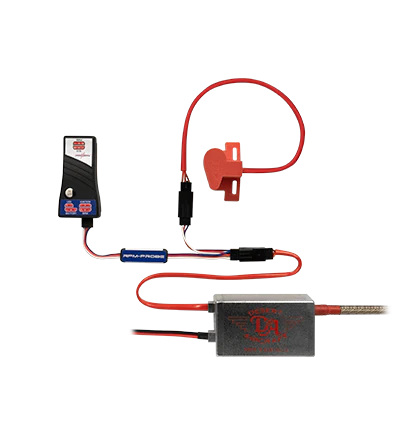

The connecting lead is simply plugged in between the ignition unit and the induction or Hall sensor. DA engines, in particular, utilize an induction pick-up, and this system collects the signal and amplifies it without placing a load on the signals.
The RPM probe draws power from the SparkSwitch RS.
|
|
