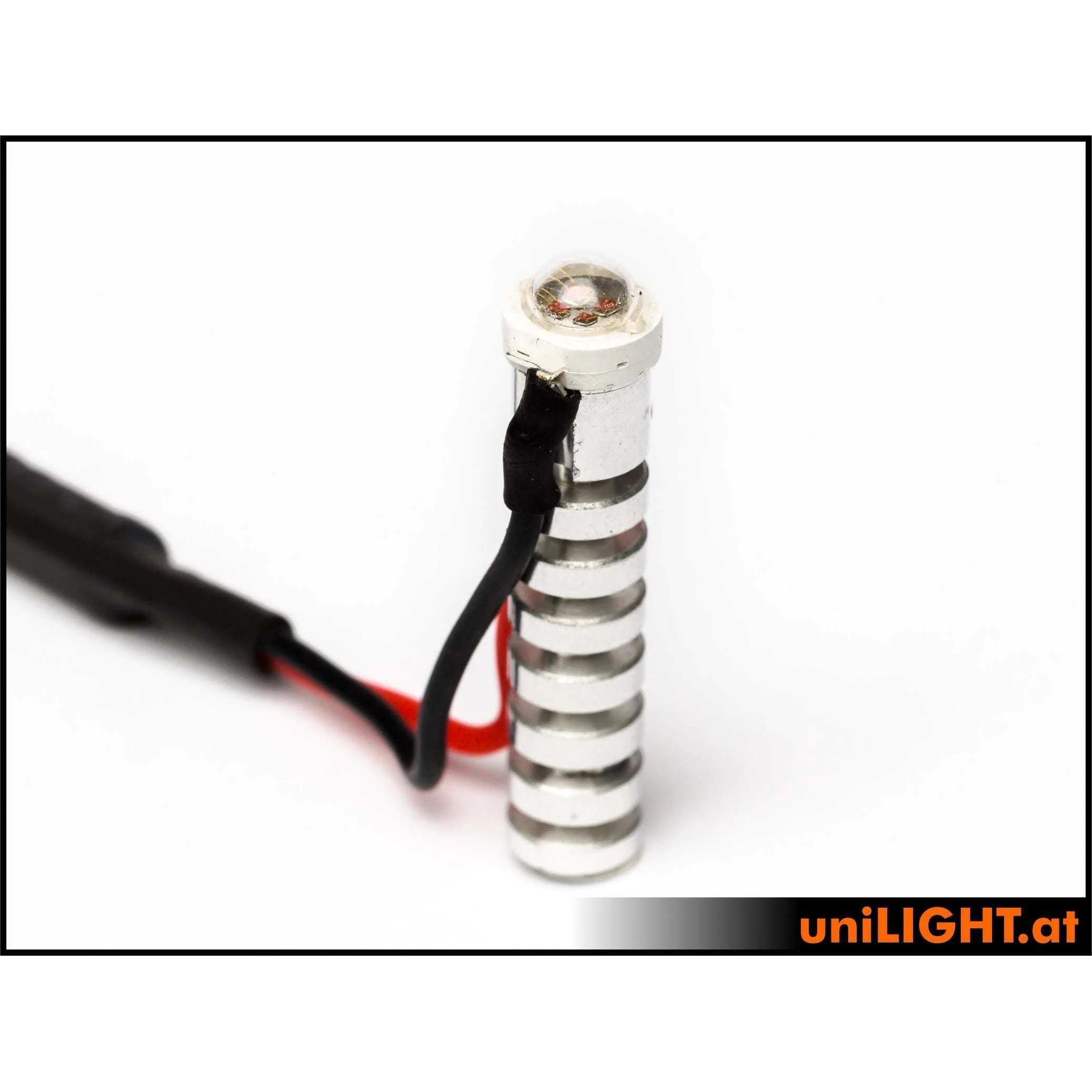

PURE Strobe Light, 8Wx2
The module is being delivered completely prewired on a special shaped aluminium heatsink.Electricity: 4W reference power, 8(12)V, 0.6A Beam angle: ~160° Light intensity: ~200 Lumen RED Light intensity: ~300 Lumen GREEN Light intensity: ~400 Lumen WHITE Dimension bolt : D17x30mm Dimension chip: D8mm Weight: 2g (without cable)Ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed The reference power is a comparison value between our offered lights.
It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. The luminaire is ready to use for operation with 2S LiPo (ca.
8V).
With 3S (12V), the enclosed resistor has to be added.
Please note that high-performance LEDs can get very hot, up to 70°C is quite normal.
These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible.
If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
The module is being delivered completely prewired on a special shaped aluminium heatsink.Electricity: 4W reference power, 8(12)V, 0.6A Beam angle: ~160° Light intensity: ~200 Lumen RED Light intensity: ~300 Lumen GREEN Light intensity: ~400 Lumen WHITE Dimension bolt : D17x30mm Dimension chip: D8mm Weight: 2g (without cable)Ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed The reference power is a comparison value between our offered lights.
It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. The luminaire is ready to use for operation with 2S LiPo (ca.
8V).
With 3S (12V), the enclosed resistor has to be added.
Please note that high-performance LEDs can get very hot, up to 70°C is quite normal.
These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible.
If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
Original: $26.00
-70%$26.00
$7.80Description
The module is being delivered completely prewired on a special shaped aluminium heatsink.Electricity: 4W reference power, 8(12)V, 0.6A Beam angle: ~160° Light intensity: ~200 Lumen RED Light intensity: ~300 Lumen GREEN Light intensity: ~400 Lumen WHITE Dimension bolt : D17x30mm Dimension chip: D8mm Weight: 2g (without cable)Ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed The reference power is a comparison value between our offered lights.
It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. The luminaire is ready to use for operation with 2S LiPo (ca.
8V).
With 3S (12V), the enclosed resistor has to be added.
Please note that high-performance LEDs can get very hot, up to 70°C is quite normal.
These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible.
If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
