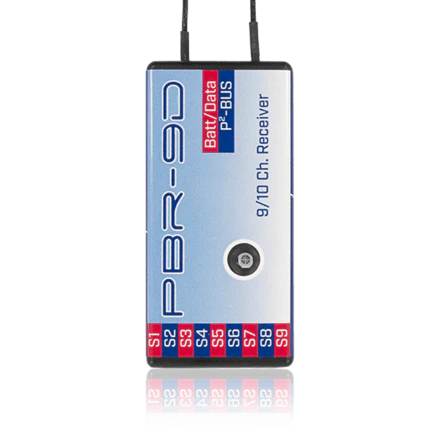

PBR-9D (9 Channel 2.4GHz Receiver)

Product image 1
1 / 3

PBR-9D (9 Channel 2.4GHz Receiver)

PBR-9D



Features

  • 9 Channel 2.4GHz Receiver
  • Two independent redundant receiver circuits
  • Extreme interference rejection
  • Ultra-long range
  • Option of iGyro SAT
  • Integral telemetry / servo bus (P²BUS)
  • High-performance real-time telemetry
  • Reception quality and airborne battery voltage available via telemetry as standard
  • Auxiliary output can be configured as Channel 10 or as serial interface (S.BUS or SRXL)
  • Parameters for all functions can be set from the transmitter

Technical Data

Operating voltage 4.0V - 9.0V
Supported RC systems CORE
Channels 26
Servo sockets 9 (10)
Servo signal resolution 4096 Bit
Integral gyro system optional with iGyro SAT
Supported telemetry systems P²BUS
Dimensions 57 x 27 x 12 mm
Weight 17g
Temperature range -30°C to +85°C

Product description

The receiver units

Five different receivers are available to match the CORE:

PBR-9D
This is a nine-channel receiver with two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 10.

PBR-7S
This is a seven-channel receiver with a single receiver circuit. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 8.

PBR-5S
This is a five-channel receiver with a single receiver circuit and an integral Chip aerial. The unit features a P²-BUS interface for servo and telemetry data, while its minuscule size makes it the natural choice for small models.

PBR-26D
This is a satellite receiver featuring two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or S-BUS. This unit is designed to be connected to our PowerBox power supply systems or a flybarless system.

PBR-8E
This is a eight-channel receiver with two redundant receiver circuits. The unit features 8 PWM servo outputs and telemetry data for battery voltage and RF-data.

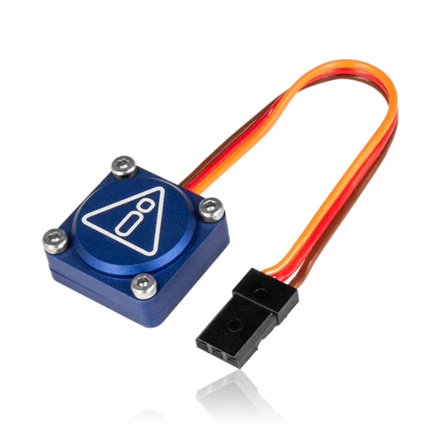

With the exception of the PBR-5S and the PBR-8E all receivers have a FastTrack interface with which the iGyro SAT can be easily connected!

PBR-9D



Features

  • 9 Channel 2.4GHz Receiver
  • Two independent redundant receiver circuits
  • Extreme interference rejection
  • Ultra-long range
  • Option of iGyro SAT
  • Integral telemetry / servo bus (P²BUS)
  • High-performance real-time telemetry
  • Reception quality and airborne battery voltage available via telemetry as standard
  • Auxiliary output can be configured as Channel 10 or as serial interface (S.BUS or SRXL)
  • Parameters for all functions can be set from the transmitter

Technical Data

Operating voltage 4.0V - 9.0V
Supported RC systems CORE
Channels 26
Servo sockets 9 (10)
Servo signal resolution 4096 Bit
Integral gyro system optional with iGyro SAT
Supported telemetry systems P²BUS
Dimensions 57 x 27 x 12 mm
Weight 17g
Temperature range -30°C to +85°C

Product description

The receiver units

Five different receivers are available to match the CORE:

PBR-9D
This is a nine-channel receiver with two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 10.

PBR-7S
This is a seven-channel receiver with a single receiver circuit. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 8.

PBR-5S
This is a five-channel receiver with a single receiver circuit and an integral Chip aerial. The unit features a P²-BUS interface for servo and telemetry data, while its minuscule size makes it the natural choice for small models.

PBR-26D
This is a satellite receiver featuring two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or S-BUS. This unit is designed to be connected to our PowerBox power supply systems or a flybarless system.

PBR-8E
This is a eight-channel receiver with two redundant receiver circuits. The unit features 8 PWM servo outputs and telemetry data for battery voltage and RF-data.

With the exception of the PBR-5S and the PBR-8E all receivers have a FastTrack interface with which the iGyro SAT can be easily connected!
