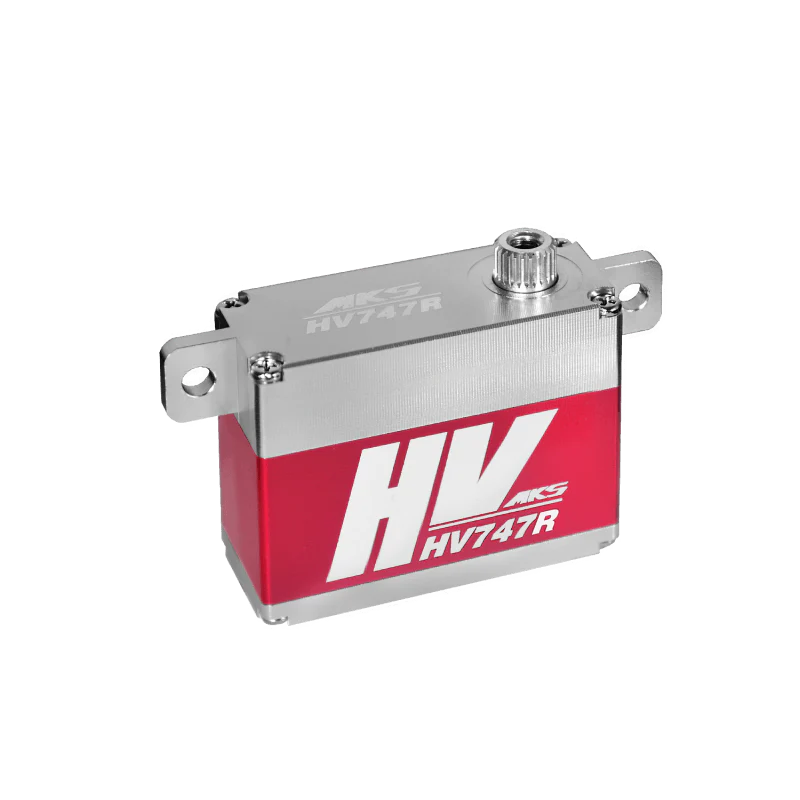

MKS HV747R

High Torque Servo for Airplane / Jet / Electric Plane



 No. S0022011



  Torque (6.0V): 11.8 kg-cm / 163.9 oz-in

  Torque (7.4V): 13.8 kg-cm / 191.6 oz-in

  Torque (8.2V): 15 kg-cm / 208.3 oz-in

  Speed: 0.17 s (6.0V)  /  0.14 s (7.4V)  /  0.13 s (8.2V)

  Weight:   40.07 g  (1.41 oz)

Dimension：35.5 x 15 x 28.6 mm

Stall Current (at locked load)	2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V)
Working Voltage	6.0V ~ 8.4V DC Volts
Working Frequency	1520μs / 333Hz
Dead Band	0.001 ms (Default)
Bearing	2* Ball Bearing
Gear	Metal Alloy Gear
Motor	Coreless Motor
Wire Length	29.5 cm
