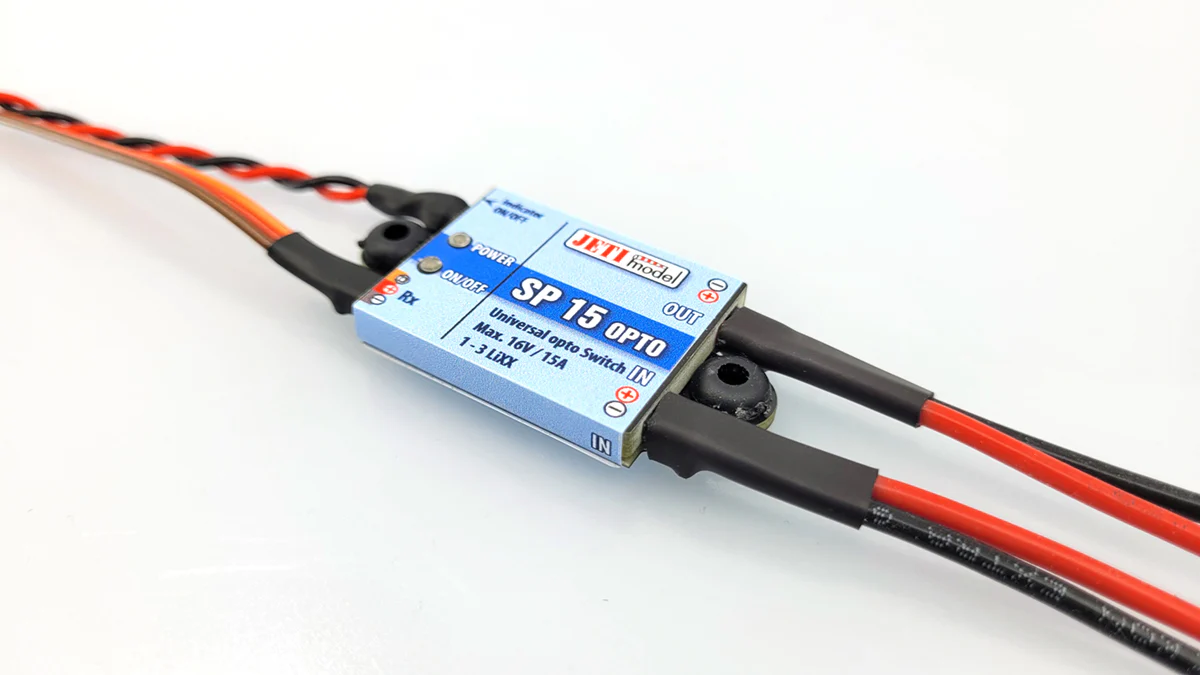

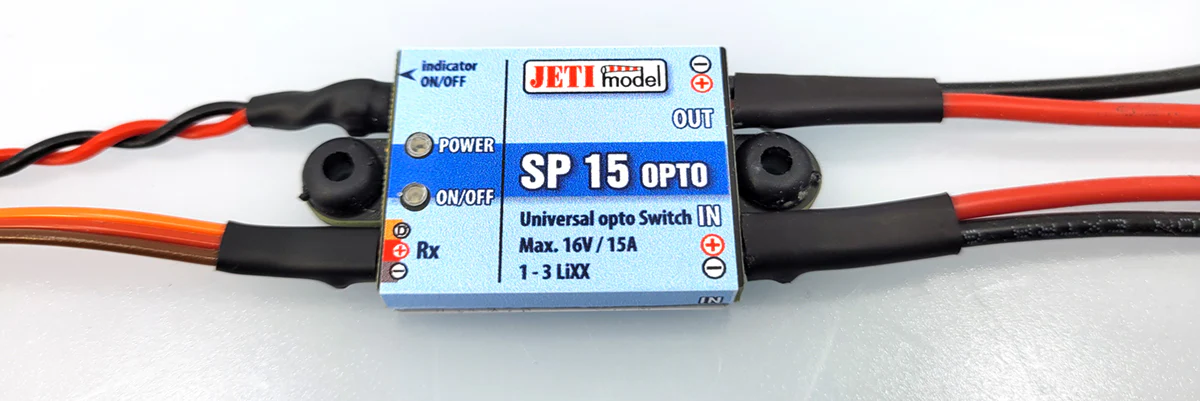

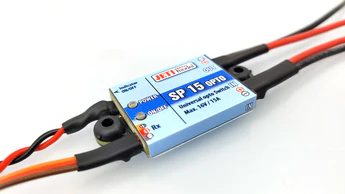

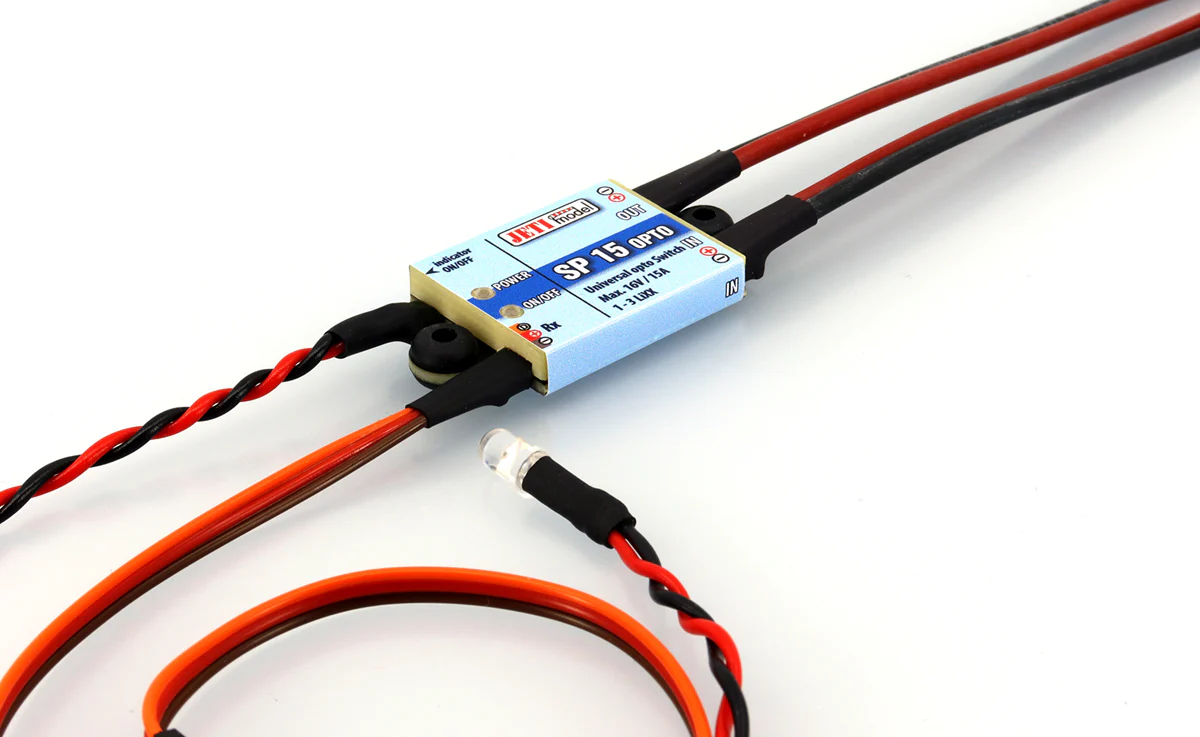

Jeti Electronic Switch SP 15 Opto
Jeti Electronic Switch SP 15 Opto
The SP-15 OPTO switch was specially developed for switching the ignition of all petrol aircraft engines ON and OFF. However, it can also be used universally for functions such as glow plug heating, lighting, and many other switching functions. The switched loads can be resistive, inductive, or capacitive. The switching status is indicated by an LED.
Technical data:
- Dimensions: 21 x 26 x 5mm
- weight: 24 g
- Switched input voltage: 5 - 16V
- Receiver voltage range: 3.5 - 12.6V
- Telemetry: no
- Temperature range: -10 - 70°C
What's in the box:

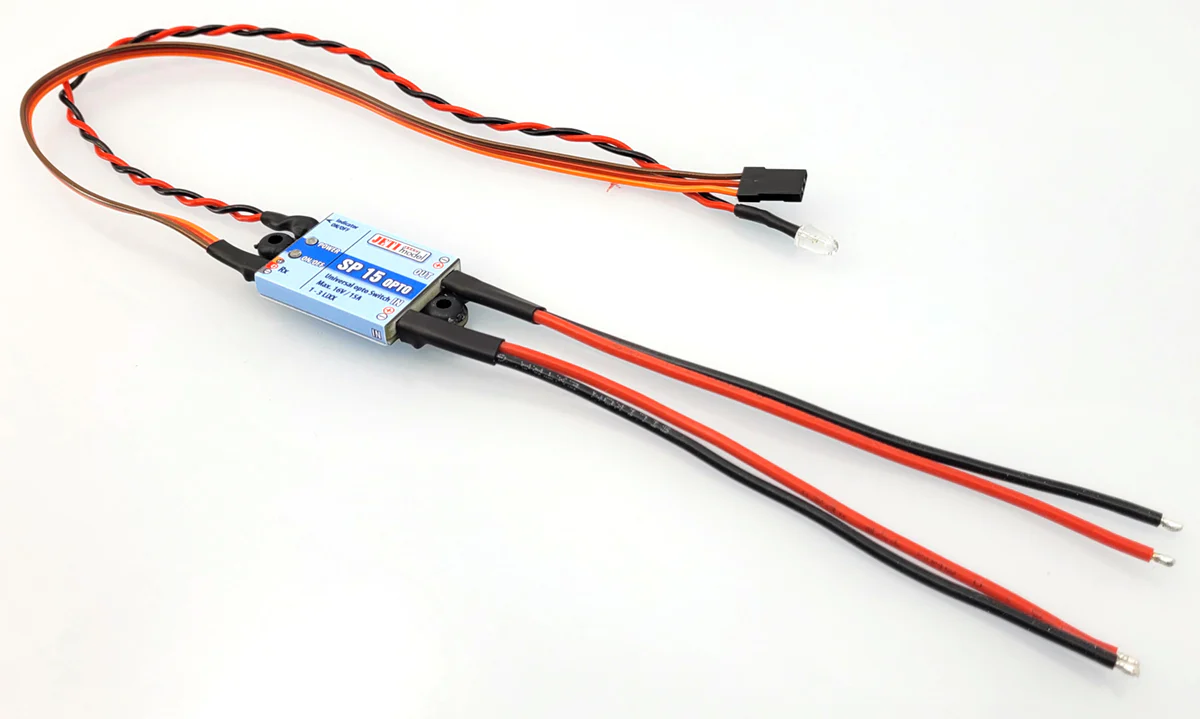

1x JETIModel SP 15 opto with cable
Jeti Electronic Switch SP 15 Opto
The SP-15 OPTO switch was specially developed for switching the ignition of all petrol aircraft engines ON and OFF. However, it can also be used universally for functions such as glow plug heating, lighting, and many other switching functions. The switched loads can be resistive, inductive, or capacitive. The switching status is indicated by an LED.
Technical data:
- Dimensions: 21 x 26 x 5mm
- weight: 24 g
- Switched input voltage: 5 - 16V
- Receiver voltage range: 3.5 - 12.6V
- Telemetry: no
- Temperature range: -10 - 70°C
What's in the box:
1x JETIModel SP 15 opto with cable
Original: $72.00
-70%$72.00
$21.60Description
Jeti Electronic Switch SP 15 Opto
The SP-15 OPTO switch was specially developed for switching the ignition of all petrol aircraft engines ON and OFF. However, it can also be used universally for functions such as glow plug heating, lighting, and many other switching functions. The switched loads can be resistive, inductive, or capacitive. The switching status is indicated by an LED.
Technical data:
- Dimensions: 21 x 26 x 5mm
- weight: 24 g
- Switched input voltage: 5 - 16V
- Receiver voltage range: 3.5 - 12.6V
- Telemetry: no
- Temperature range: -10 - 70°C
What's in the box:
1x JETIModel SP 15 opto with cable
