Jet-Tronics Single Valve / M Valve
Jet Tronics Single Valve / M Valve

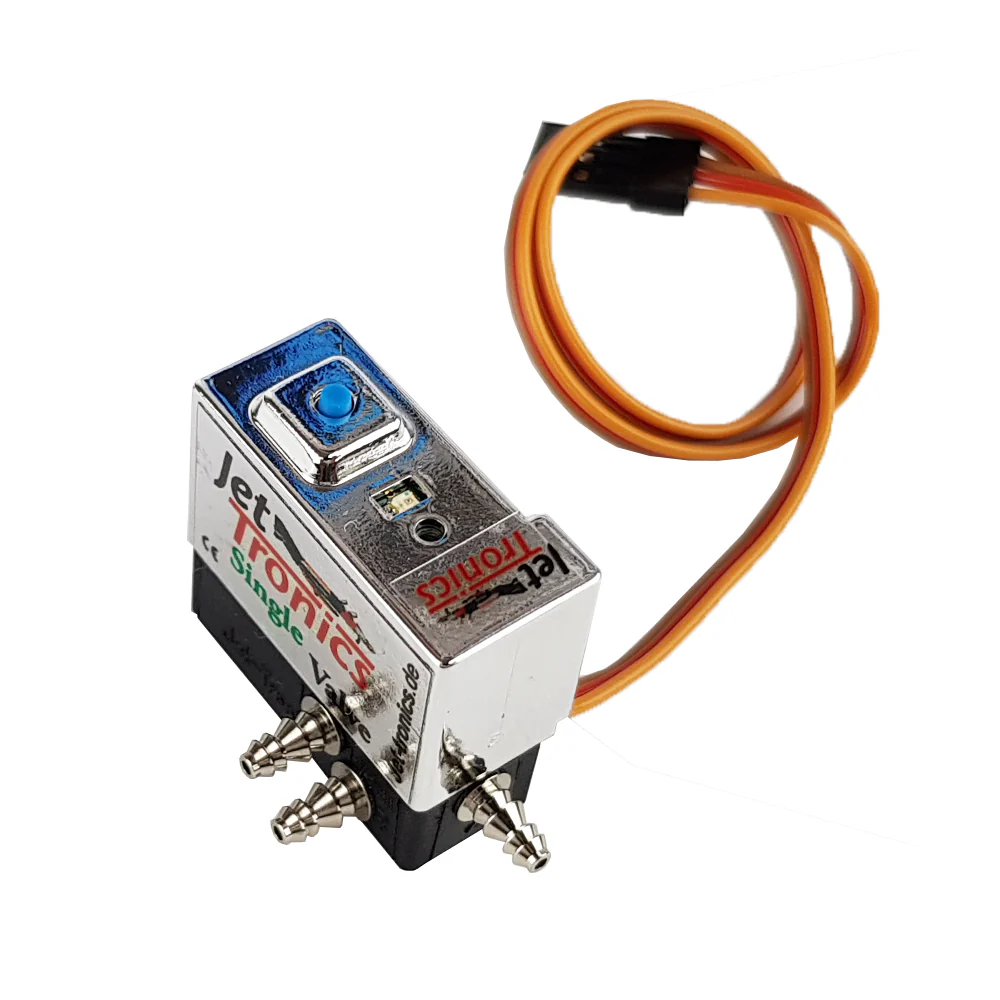

Jet-Tronics Single Valve / M Ventil This valve is attached directly to the receiver to control undercarriages with spring loaded single acting cylinders and wheel brakes with proportional function (PWM). (Pre-selected mode: brake function)
Jet Tronics Single Valve / M Valve
This valve is attached directly to the receiver to control undercarriages with spring loaded single acting cylinders and
wheel brakes with proportional function (PWM). (Pre-selected mode: brake function)
Technical data:
| Supply voltage | 5 – 9V |
| Current consumption | 100 mA bei 5 V |
| Pressure range | 0 - 10 bar |
| Measurements (L/W/H) | 28 x 16 x 28 mm |
| Weight | 23 g |
| Connection | Universal connectors for tubes from 2.5 to 4 mm outer diameter |
Jet Tronics Single Valve / M Valve
Jet-Tronics Single Valve / M Ventil This valve is attached directly to the receiver to control undercarriages with spring loaded single acting cylinders and wheel brakes with proportional function (PWM). (Pre-selected mode: brake function)
Jet Tronics Single Valve / M Valve
This valve is attached directly to the receiver to control undercarriages with spring loaded single acting cylinders and
wheel brakes with proportional function (PWM). (Pre-selected mode: brake function)
Technical data:
| Supply voltage | 5 – 9V |
| Current consumption | 100 mA bei 5 V |
| Pressure range | 0 - 10 bar |
| Measurements (L/W/H) | 28 x 16 x 28 mm |
| Weight | 23 g |
| Connection | Universal connectors for tubes from 2.5 to 4 mm outer diameter |
Original: $118.99
-70%$118.99
$35.70Description
Jet Tronics Single Valve / M Valve
Jet-Tronics Single Valve / M Ventil This valve is attached directly to the receiver to control undercarriages with spring loaded single acting cylinders and wheel brakes with proportional function (PWM). (Pre-selected mode: brake function)
Jet Tronics Single Valve / M Valve
This valve is attached directly to the receiver to control undercarriages with spring loaded single acting cylinders and
wheel brakes with proportional function (PWM). (Pre-selected mode: brake function)
Technical data:
| Supply voltage | 5 – 9V |
| Current consumption | 100 mA bei 5 V |
| Pressure range | 0 - 10 bar |
| Measurements (L/W/H) | 28 x 16 x 28 mm |
| Weight | 23 g |
| Connection | Universal connectors for tubes from 2.5 to 4 mm outer diameter |
