Air Trap 100Ml High Flow Best Air Trap.

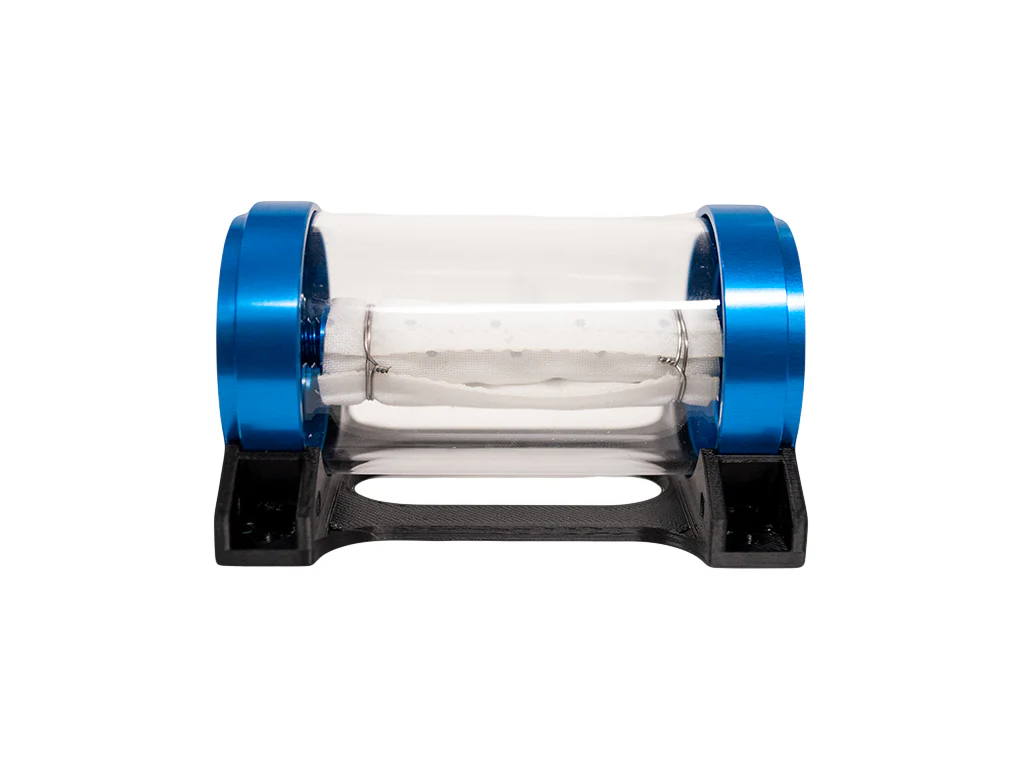

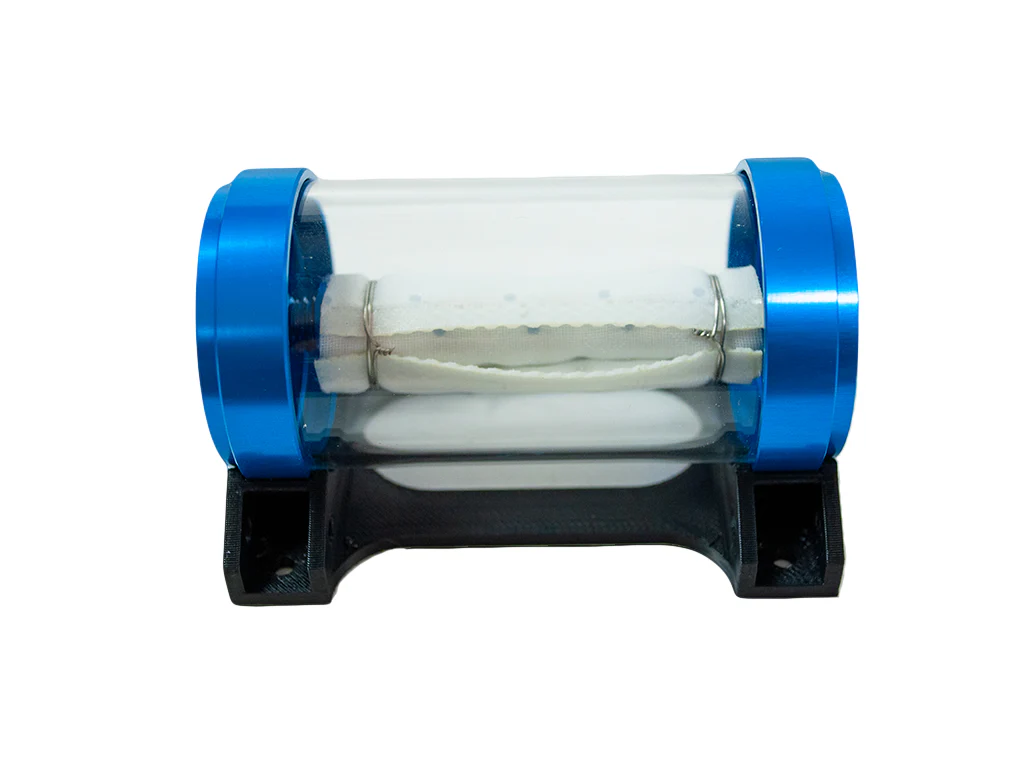

Air trap 100ML

Bubble-free turbine operation.

Made of 7076 aluminum

Comes with all the hardware, and the mounting support can be bought optional or you can print it yourself. download the file here: 3D mount.



What it's included

Please note that the manufacturer frequently changes the sizes/type of fittings included, and AeroPanda has no control over that. It could include:

• (1) M5 Thread to 4mm Tube and (2) M5 to 6mm Tube  OR
• (2) M5 Thread to 4mm Tube and (1) M5 to 6mm Tube

We suggest using 6mm for the tank and 4mm for the Turbine pump. for turbines up to 100N. The 6MM connection, it's good up to a 140 KG turbine.

AEROPANDA Exclusive, includes a high-quality 3D print base for smooth and clean installation.

If you need additional fittings or exchange the fitting, you can find them here:



Festo compressed fitting

 6mm OD part (CK-M5-PK-4)

 4mm OD part (CK-M5-PK-3)



Festo barbed fitting



 M5 to 6mm OD (N-M5-PK-4)

Weight without mount: 72 grams approx.

Weight included the mount: 90 grams approx.

Size : Length 84MM / Diameter 45MM
