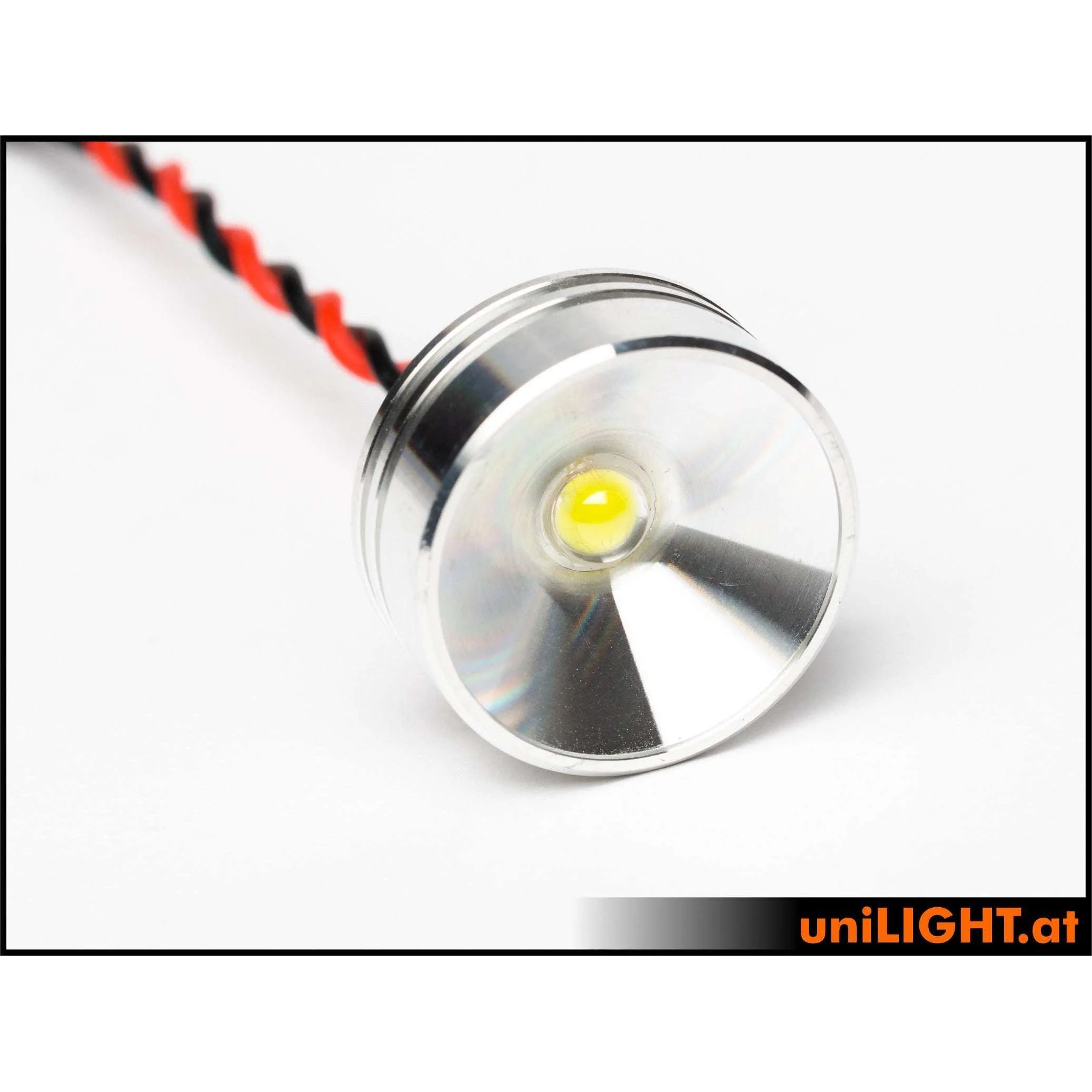

26mm Alu-Spotlight, 4W
Ideal on gears or as drop-out spotlights.
The spotlight can be directly glued on the undercarriage leg with thermal conductive adhesive to allow long time operation.
Without airflow operation of 5-8 minutes are possible without problems.
Direct operation with 2S LiPo (8V).
With 3S (12V), the additional resistor has to be soldered in or use a 4W connection cable (accessories).
Please ensure sufficient cooling air during operation.
Performance: 4W reference power Voltage: 8V, use enclosed resistor additionally for 12V! Electricity: 0.4A Beam angle: ~100° Light intensity: ~110 Lumen WHITE Light intensity: ~95 Lumen WARMWHITE Dimension: D26x11mm Weight: 10g (without cable) R eady to use with 1m connection cable and additional resistor for 3S operation The reference power is a comparison value between our offered lights.
It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
Ideal on gears or as drop-out spotlights.
The spotlight can be directly glued on the undercarriage leg with thermal conductive adhesive to allow long time operation.
Without airflow operation of 5-8 minutes are possible without problems.
Direct operation with 2S LiPo (8V).
With 3S (12V), the additional resistor has to be soldered in or use a 4W connection cable (accessories).
Please ensure sufficient cooling air during operation.
Performance: 4W reference power Voltage: 8V, use enclosed resistor additionally for 12V! Electricity: 0.4A Beam angle: ~100° Light intensity: ~110 Lumen WHITE Light intensity: ~95 Lumen WARMWHITE Dimension: D26x11mm Weight: 10g (without cable) R eady to use with 1m connection cable and additional resistor for 3S operation The reference power is a comparison value between our offered lights.
It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
