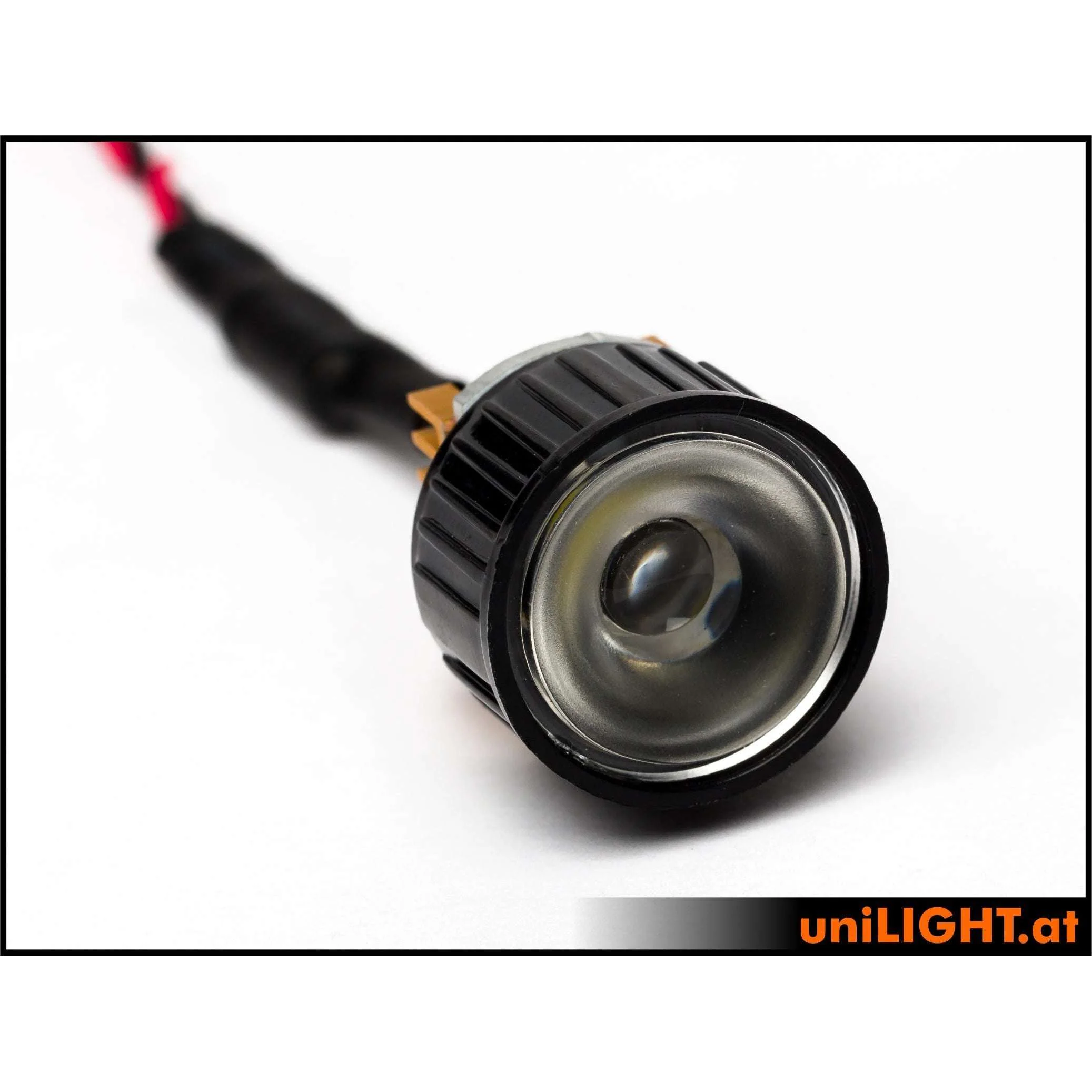

22mm ECO-Spotlight with lens, 4W
Compact construction as landing light or Front-ACL.
Small heatsink for continuous operation with air cooling.
Direct operation with 2S LiPo (8V).
With 3S (12V), the additional enclosed resistor has to be soldered in or use a 4W adaption cable (accessories).
Performance: 4W reference power Voltage: 8V, use enclosed resistor additionally for 12V! Electricity: 0.35A Beam angle: ~60° Light intensity: ~110 Lumen WHITE Light intensity: ~95 Lumen WARMWHITE Dimension: D19x20mm Weight: 6g (without cable) R eady to use with 1m connection cable and additional resistor for 3S operation The reference power is a comparison value between our offered lights.
It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
