16mm PRO Navigation Light, 4W

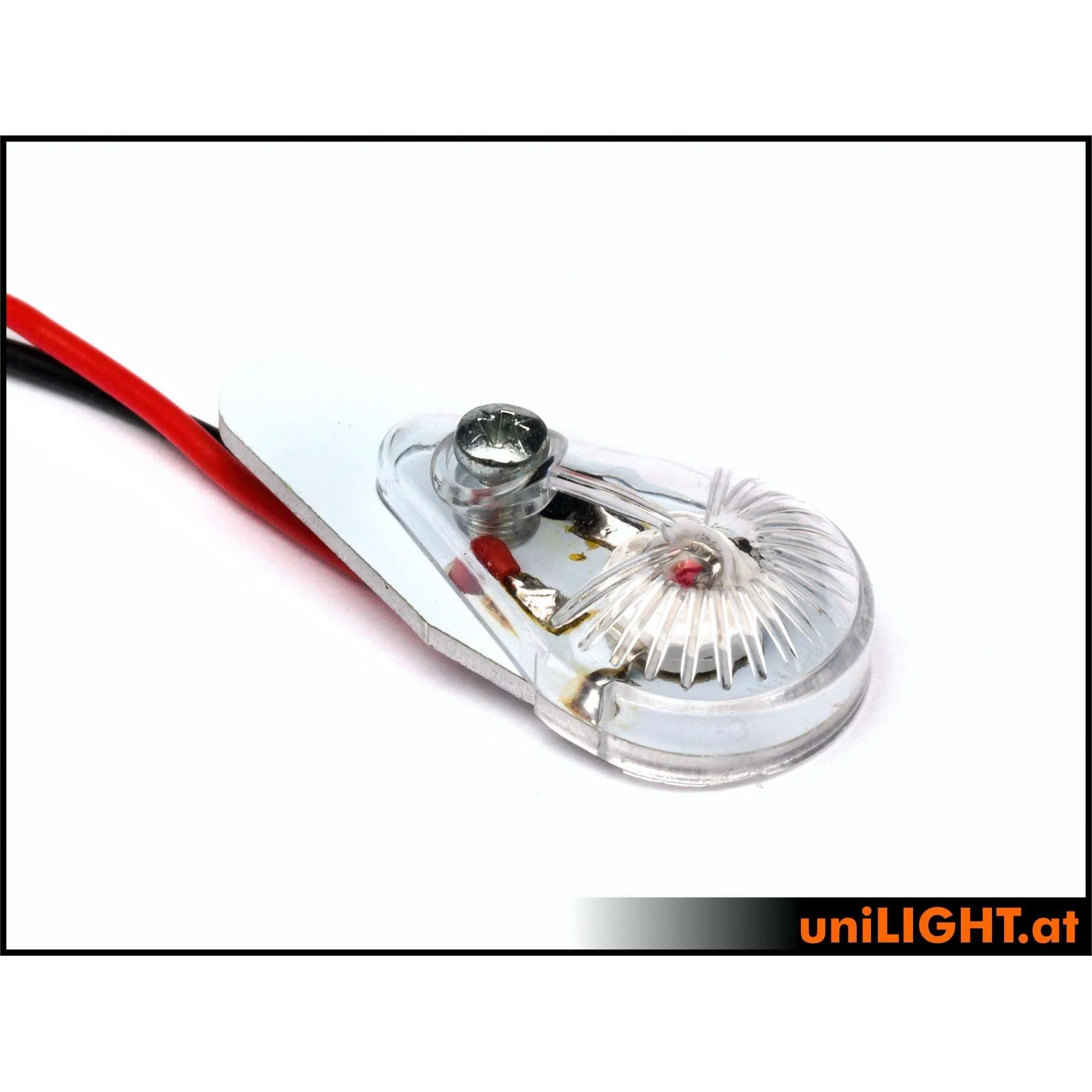

The luminaire is delivered as a ready assembled unit on an aluminium assembly plate and a changeable polycarbonate cap as covering.
The luminaire is ready to use for 2S Lipo (ca.
8V) operation.
With 3S (12V) operation, the enclosed resistor has to be used.
Alternatively use a 4W-3S adapter cable.Electricity: 4W reference power, 8(12)V, 0.35A Beam angle: >160° Light intensity: ~50 Lumen RED Light intensity: ~70 Lumen RED Light intensity: ~110 Lumen WHITE Dimension base panel: 16x37mm Overall dimension: 17x38x9mm Weight: 4g (without cable)Ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed
The luminaire is delivered as a ready assembled unit on an aluminium assembly plate and a changeable polycarbonate cap as covering.
The luminaire is ready to use for 2S Lipo (ca.
8V) operation.
With 3S (12V) operation, the enclosed resistor has to be used.
Alternatively use a 4W-3S adapter cable.Electricity: 4W reference power, 8(12)V, 0.35A Beam angle: >160° Light intensity: ~50 Lumen RED Light intensity: ~70 Lumen RED Light intensity: ~110 Lumen WHITE Dimension base panel: 16x37mm Overall dimension: 17x38x9mm Weight: 4g (without cable)Ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed
Description
The luminaire is delivered as a ready assembled unit on an aluminium assembly plate and a changeable polycarbonate cap as covering.
The luminaire is ready to use for 2S Lipo (ca.
8V) operation.
With 3S (12V) operation, the enclosed resistor has to be used.
Alternatively use a 4W-3S adapter cable.Electricity: 4W reference power, 8(12)V, 0.35A Beam angle: >160° Light intensity: ~50 Lumen RED Light intensity: ~70 Lumen RED Light intensity: ~110 Lumen WHITE Dimension base panel: 16x37mm Overall dimension: 17x38x9mm Weight: 4g (without cable)Ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed
