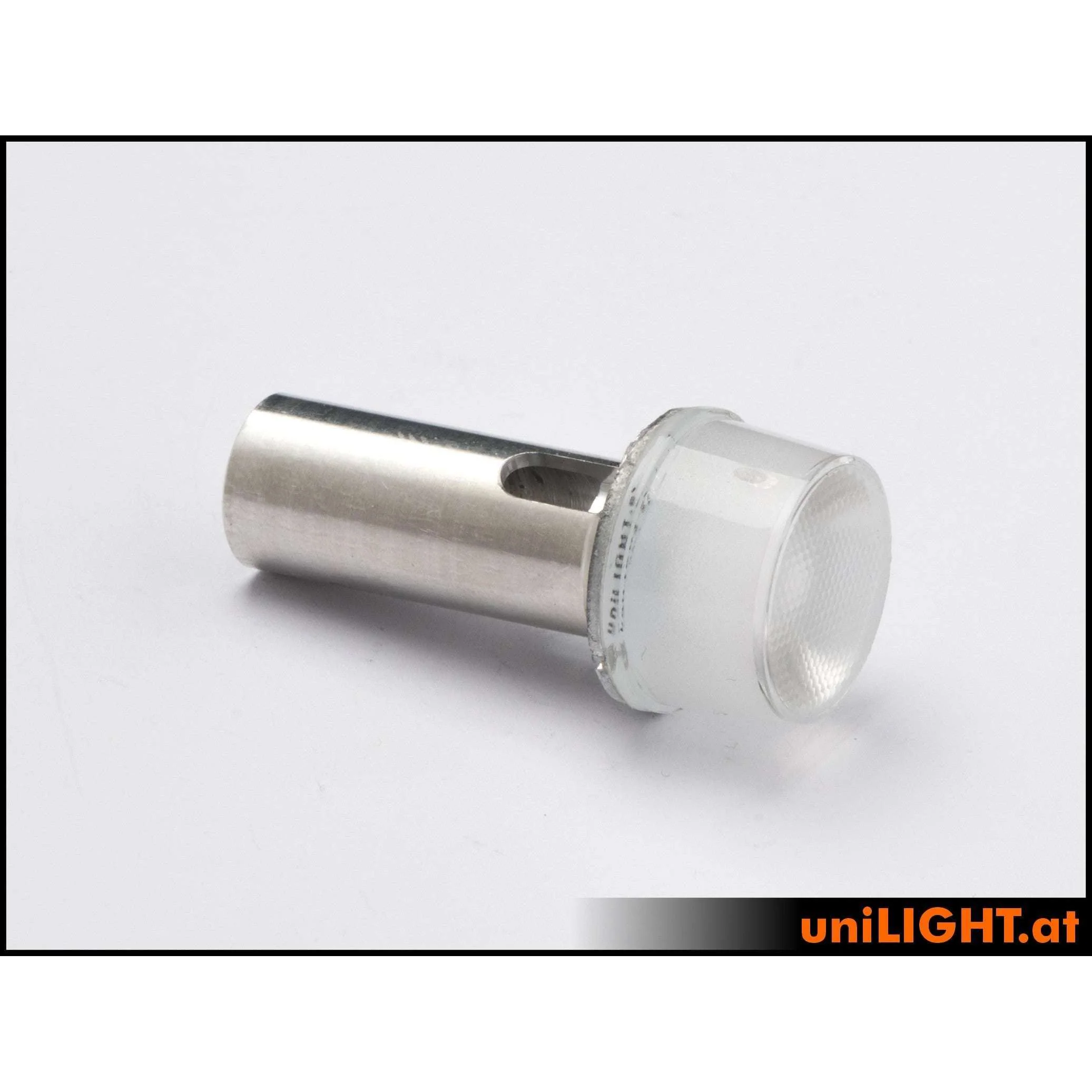

16mm ECO-Spotlight, 2,5Wx2
Absolute innovation concerning luminous power: 4x s.c.
cree-chips are bundled in the LED emitter in order to achieve an unprecedented performance in the smallest of spaces.
Top performance! Direct operation with 2S LiPo (8V).
With 3S (12V), an additional resistor has to be soldered in or use a 4W adaption cable.
Please ensure sufficient cooling air during operation.
For the first time in model making, the spotlights are equipped with an integrated overtemperature protection .
If the enclosure becomes too warm, the light will be safely switched off. Without any further cooling, do not operate such spotlights more than 3 minutes at a time.
Otherwise, the protection will switch off the light or let it blink.
Performance: 2,5Wx2 reference power Overtemperature protection: switch-off and clocking of the light at 65-70° Voltage: 8V, use enclosed resistor additionally for 12V! Electricity: 0.2A Beam angle: ~50° Light intensity: ~200 Lumen WHITE Light intensity: ~200 Lumen WARMWHITE Dimension: D13x34mm, Weight: 2g (without cable) Ready to use with 1m connection cable and additional resistor for 3S operation With the X2 technique high power LEDs are operated in a "cluster".
These achieve double the light output for the same heat or the same light output at half heat dissipation.
Yet our X2 lights are still fully compatible with all our other lamps.
If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery.
The reference power is a comparison value between our offered lights.
It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
