JetCentral JETI Telemetry Adapter V2

Small and lightweight telemetry adapter; you will get all the information from directly the turbine to your transmitter.

Supported System: Jeti
Size: 17mm x 37mm
Weight: 6g
Consumption: 32mA

Jet Central telemetry display for Jeti DC/DS-24, DS-12 Transmitters

FOR DISPLAY TELEMETRY WITH LUA APP YOU REQUIRE:

Requisites:

Updated V2 Jeti Telemetry Module from Jet Central
Transmitter firmware version 4.27 LUA or above

Installation:

For single-engine:

Download JCHDT.lc to Apps folder in your transmitter, File for the DS/DC-24/16G2/14G2 or DS-12 can be downloaded HERE for DC/DS-16G1 require the file HERE
Download/JetCentral/CF.png (for the color version) or
Download/JetCentral/BLK.png (for the Black version).
to the Apps/JetCentral/ folder in your transmitter IMPORTANT: RENAME DE FILE TO CF.png or BLK.png (If the folder doesn't exist, create a folder called JetCentral inside the Apps folder) Image File for the DS/DC-24, DS-16 or DS-12 can be download

Color Version HERE

Black Version HERE

Go to: Menu > Applications > User Applications
Press [F3][+] and select JCHDT.lc

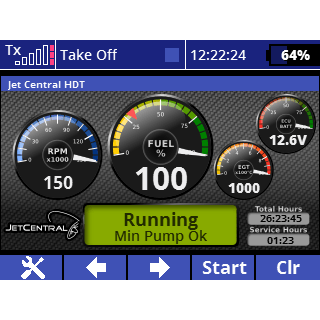

You can configure the App in Menu > Timers/Sensors > JetCentral HDT
Add "JetCentral HDT" in Menu > Timers/Sensors > Displayed Telemetry for full telemetry display or...
Add "JetCentral MFD" for a small telemetry display

For multi-engine:

Download JCTwin.lc to the Apps folder in your transmitter, Files for the DS/DC-24/16G2/14G2 or DS-12 can be downloaded HERE
Download /JetCentral/CFTwin.png to the Apps/JetCentral/ folder in your transmitter IMPORTANT: RENAME DE FILE TO CFTwin.png (If the folder doesn't exist, create a folder called JetCentral inside the Apps folder) Image File for the DS/DC-24 or DS-12 can be downloaded HERE
Go to: Menu > Applications > User Applications
Press [F3][+] and select JCHDT.lc
You can configure the App in Menu > Timers/Sensors > JetCentral HDT
Add "JetCentral HDT" in Menu > Timers/Sensors > Displayed Telemetry for full telemetry display or...
Add "JetCentral MFD" for a small telemetry display

TURBINES ACCESORIES

Price

Collections

JetCentral On Board HDT Unit (Hand Data Terminal - On Board)

JetCentral HDT Unit Hand Data Terminal

JetCentral Variable Flow Smoke System

JetCentral Bluetooth Adapter

JETCENTRAL ECU LIFE BATTERY 2100 mAh

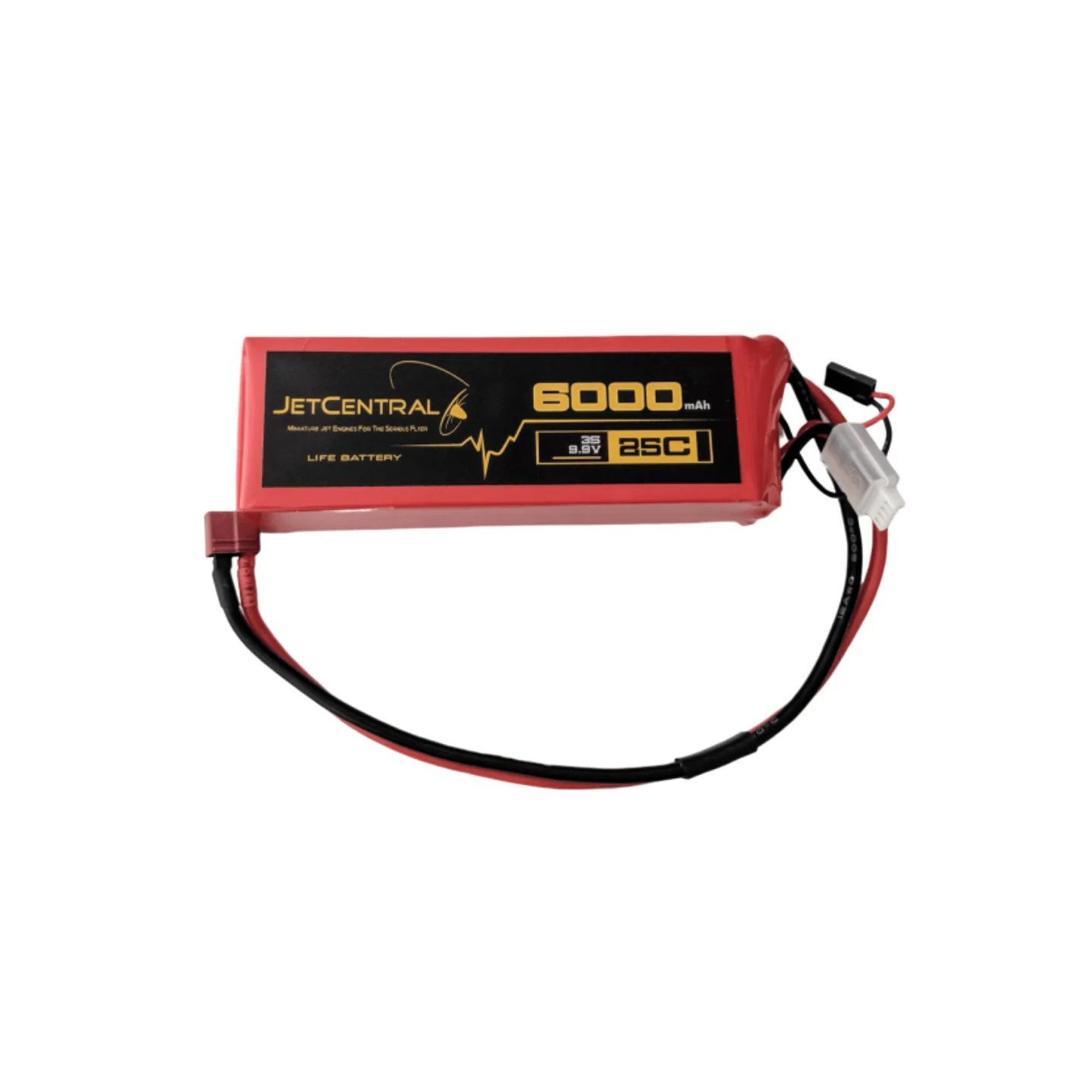

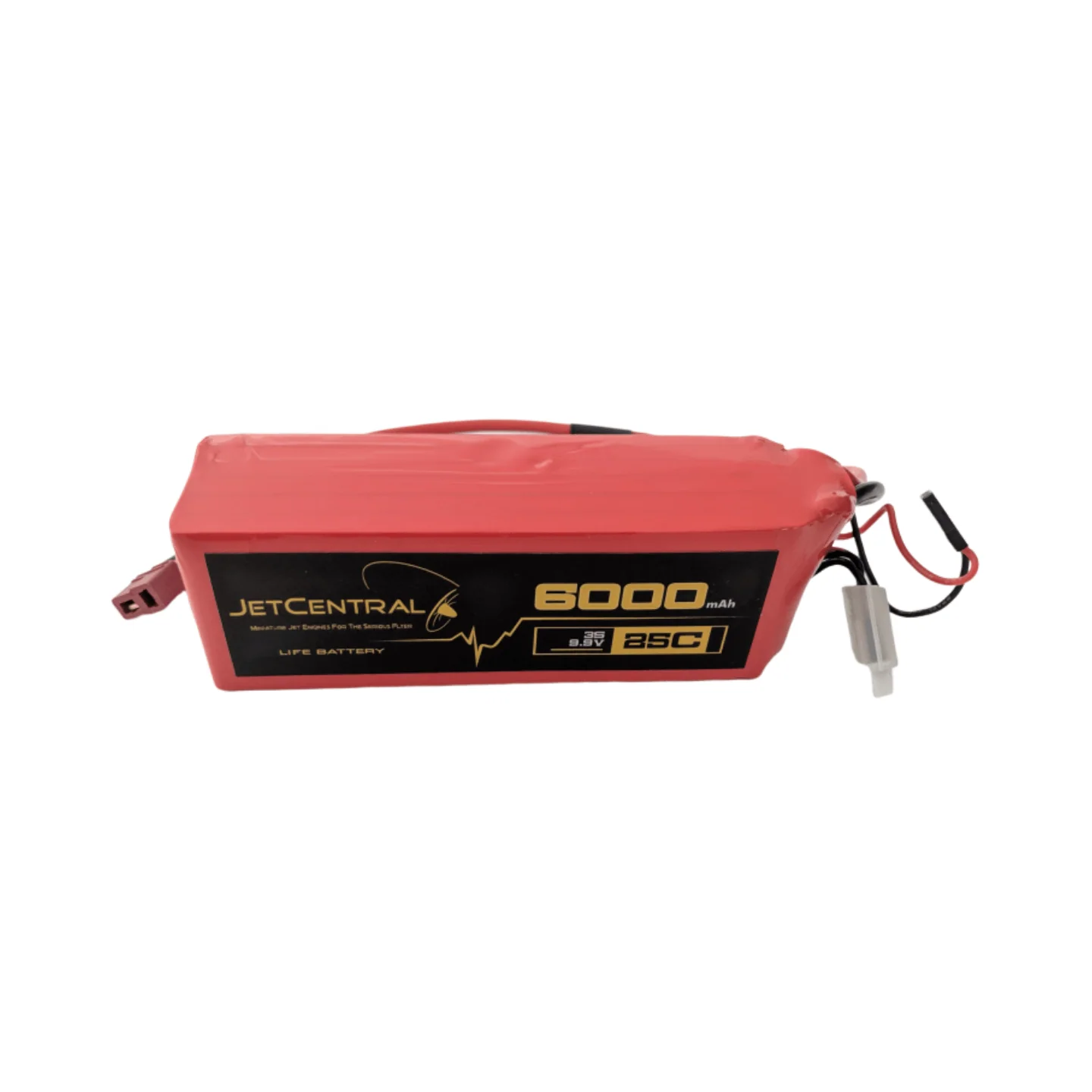

JETCENTRAL ECU LIFE BATTERY 6000 mAh

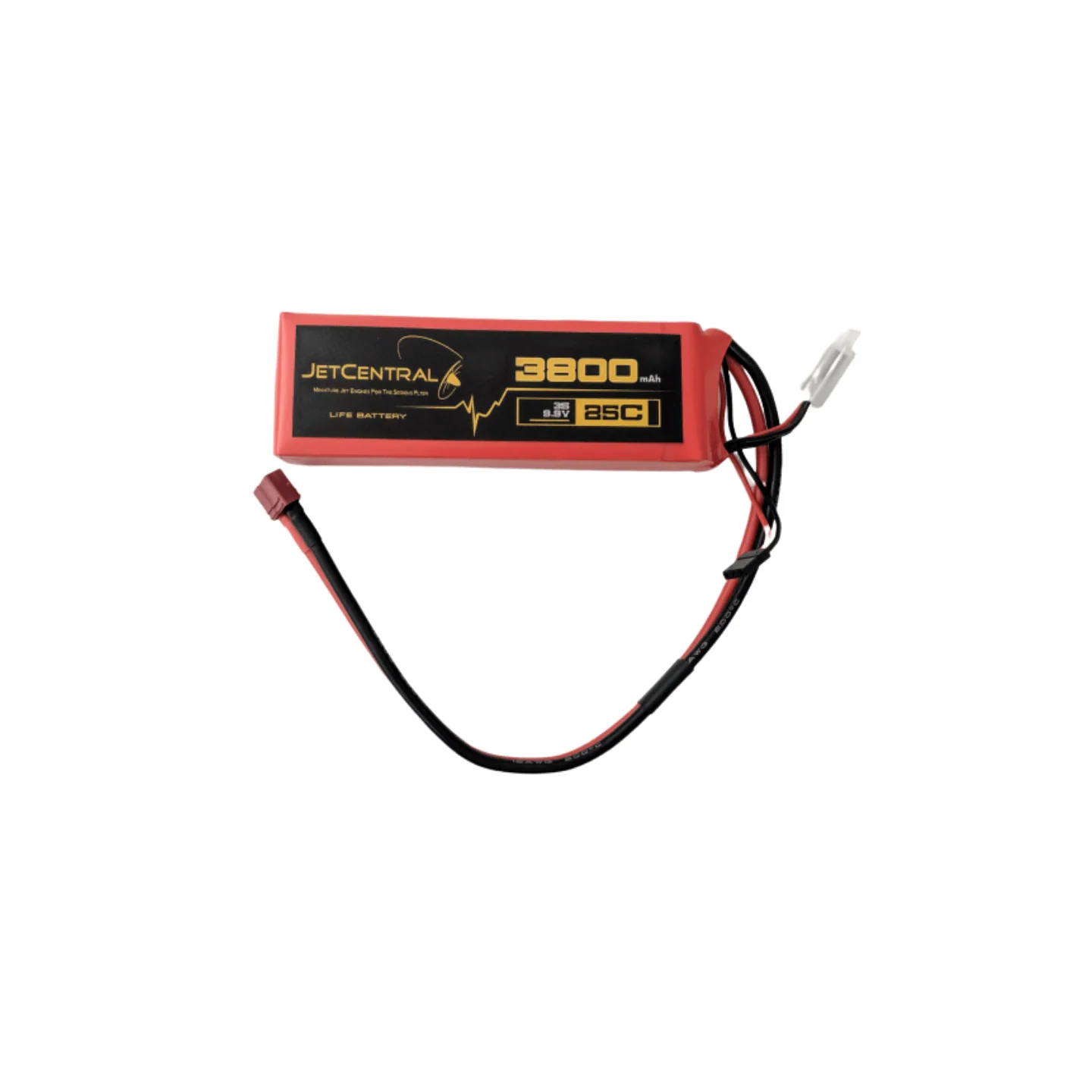

JETCENTRAL ECU LIFE BATTERY 3800 mAh

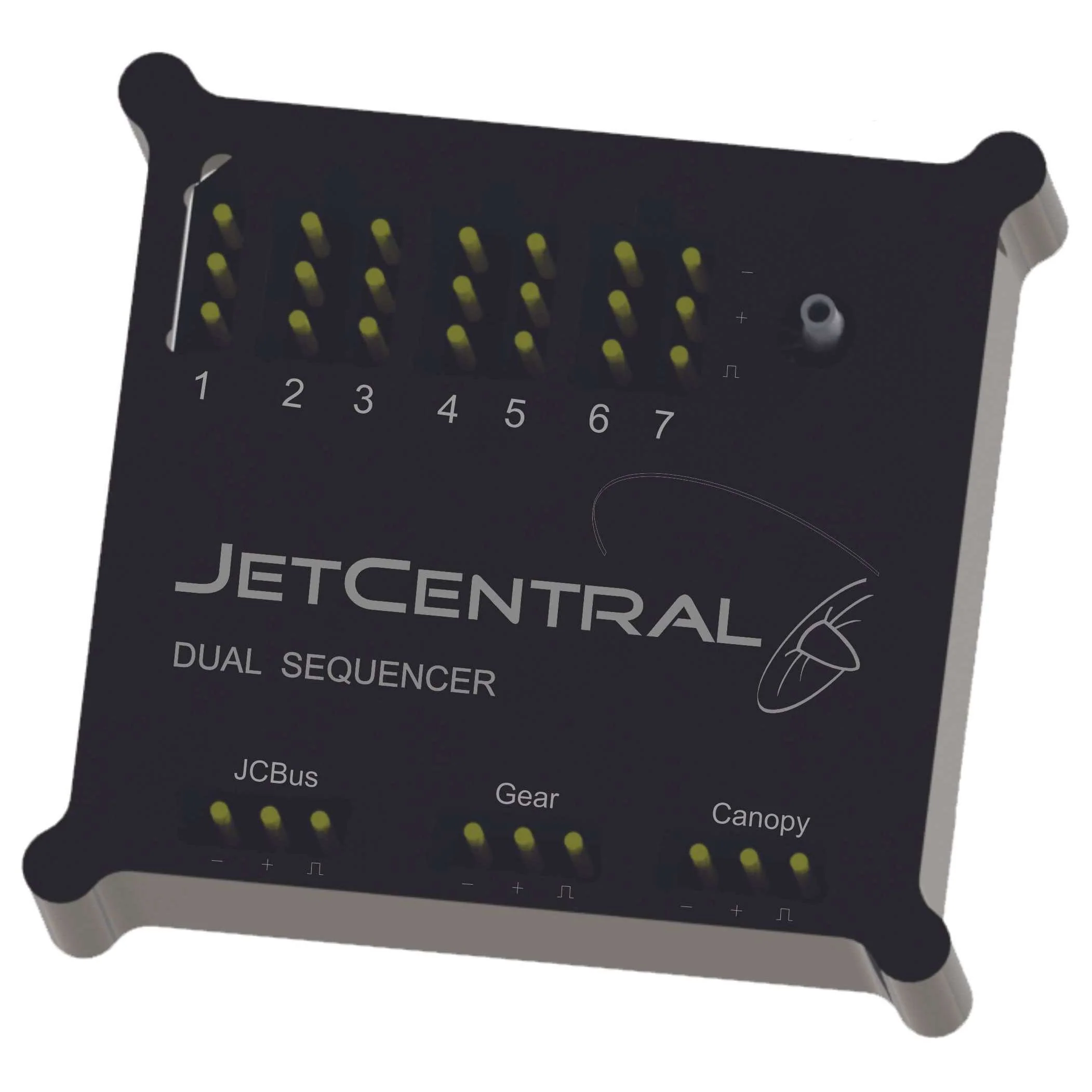

JetCentral Dual Sequencer PLUS New version!

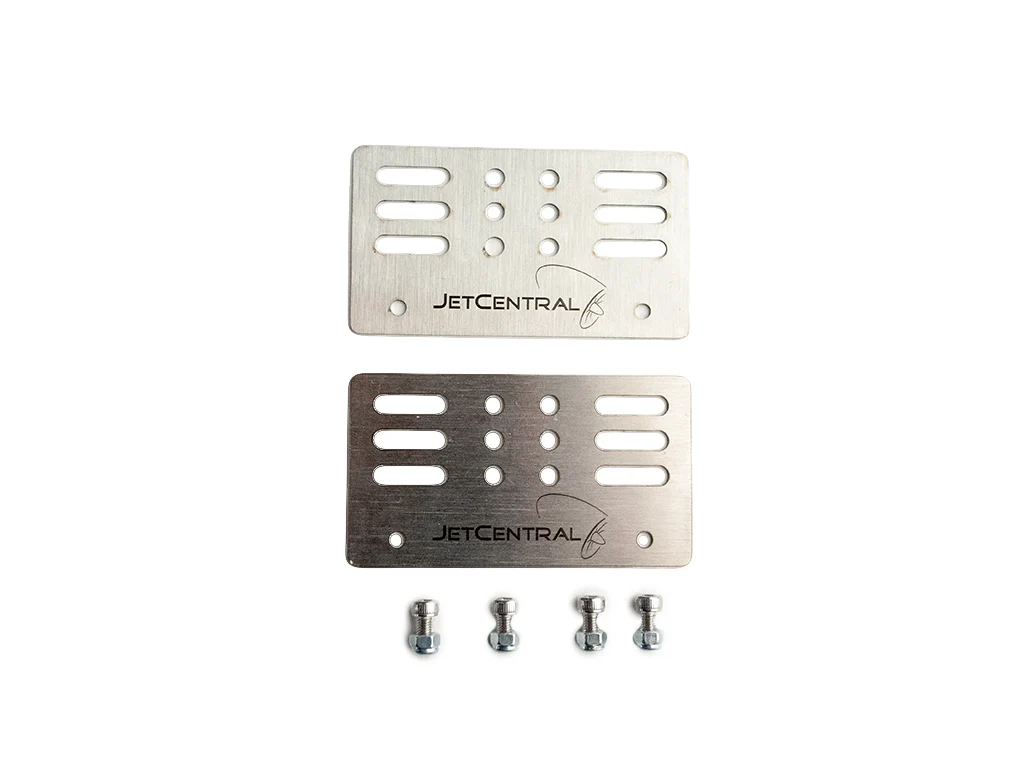

JetCentral Mounting Turbine Extensions
